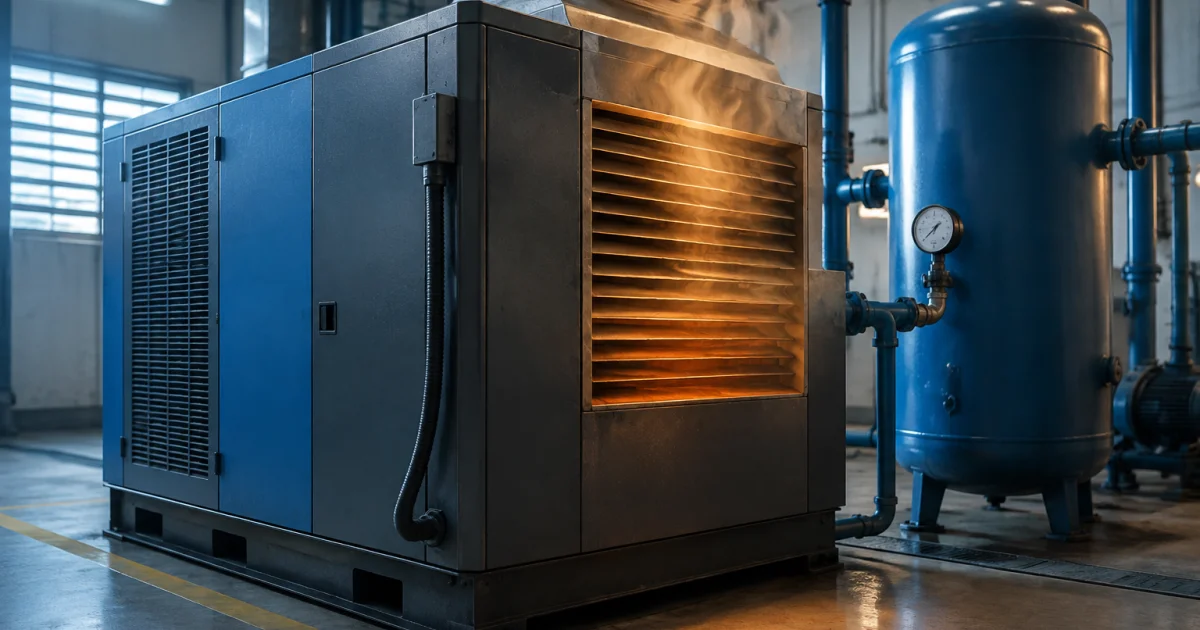

Walk into many compressor rooms and you’ll see the same pattern: a “big” machine pulling high kW, hot discharge air, and yet production still complains about pressure drops. Across Air Compressor Malaysia searches and site visits, this keeps repeating—factories inherit an oversized setup installed “to be safe,” then live with high operating cost and unstable performance.

This article is intentionally opinionated: “bigger is better” is usually the wrong default for compressed air. Bigger only helps when it’s matched to the right duty profile, controls, storage, and distribution. Otherwise, it often increases trips, moisture issues, and electricity bills.

Why oversizing often makes reliability worse (not better)

The logic sounds simple: “If we buy a larger compressor, we’ll always have enough air.” The problem is that plant demand is rarely steady. Packaging cylinders pulse, blow-offs spike, shifts change, and leaks vary by area. When a fixed-speed compressor is much larger than average demand, it spends more time unloading (idling) or short-cycling between load and unload.

• More run hours with less useful output: Unloaded running still burns real power. You pay to keep the airend spinning without delivering useful air.
• More heat and moisture instability: Cycling can destabilise temperatures and downstream moisture control, increasing condensate carryover and drain/aftercooler burden.
• More nuisance trips: Fast pressure/temperature swings are harder on protection limits—especially when ventilation is marginal.
• Pressure instability: Big capacity without enough receiver volume or proper control can create wider pressure swings, not fewer.

In practice, many “reliability” complaints are not because the compressor is too small—they’re because capacity and control don’t match the real demand curve.

The hidden cost: unload power, short cycling, and artificial demand

Oversizing rarely looks expensive on a brochure. It becomes expensive in the in-between states: part load, unload, and pressure hunting.

1) Unloaded power is still power

Fixed-speed rotary screw machines can consume meaningful power while unloaded. If your system is oversized, it may idle for long periods—electricity consumption without proportional air delivery.

2) Short cycling increases wear

Frequent load/unload transitions add stress to valves, separators, starters/contactors, and drive components. If you’re seeing more faults, hot starts, or premature separator issues, oversizing plus poor tuning is a common root cause.

3) Higher pressure setpoints create artificial demand

When pressure is unstable, teams often raise setpoints “so the far end won’t drop.” That usually increases total consumption because leaks and unregulated uses flow more at higher pressure. The loop becomes: pressure complaints → higher setpoint → higher flow and kWh → still unstable at peak points.

Practical takeaway: Treat pressure as a cost driver. If you “need” more pressure to make the plant work, the real issue is typically pressure drop, storage, regulation, or control strategy—not a lack of compressor horsepower.

How to tell if your compressor is oversized (without guessing)

You don’t need an engineering thesis to confirm oversizing. Start with signals your maintenance team can observe during a typical shift.

Check these in the compressor room

• High unload/idle time: Runs most of the day but produces intermittently.
• Wide pressure band: Big swings between load/unload or cut-in/cut-out, especially with “normal” production.
• Frequent starts or rapid load/unload toggling: Often indicates too much capacity for the receiver/storage and demand pattern.
• Hot room, marginal cooling: Bigger machines reject more heat; poor ventilation increases high-temp trips.
• Complaints despite high discharge pressure: Suggests delivery constraints (piping, filters/dryers, regulation) more than capacity.

Check these on the production floor

• Regulators “creep” upward: Operators keep adjusting higher to compensate for drops.
• Persistent low pressure in one zone: Often a piping/header bottleneck or undersized drops.
• More filter clogging/moisture symptoms: Can worsen when the system cycles and destabilises.

Symptom	Likely cause	Check first	Common wrong fix
Runs all day but often unloaded	Too much capacity or poor sequencing	Run/unload ratio; pressure band; which unit is base-load	Buy an even bigger unit “for buffer”
Rapid load/unload cycling; nuisance alarms	Oversized vs receiver volume; unstable control	Receiver size/location; control tuning; demand volatility	Raise pressure setpoint
High discharge pressure but low pressure at far end	Distribution pressure loss/restrictions	ΔP across filters/dryer; header sizing; regulator settings	Increase system pressure for everyone
Wet air; drains overwhelmed; dryer struggles	Cycling/unstable operation; inadequate cooling	Ventilation; aftercooler performance; drain function	Blame the dryer only
Higher bill with no production increase	Artificial demand + unload hours + leaks	Leak survey; setpoints; off-hours consumption	Accept it as unavoidable overhead

What to do instead: match capacity to demand with better controls

Oversizing is usually a system issue. The strongest fixes combine right-sized capacity, control strategy, adequate storage, and reduced pressure drop.

1) Use a base-load + trim approach (instead of one huge machine)

Many plants run more efficiently with one compressor covering steady demand (base-load) while another handles peaks (trim). This reduces unloaded hours and improves pressure stability. If a large fixed-speed unit is cycling, it may be better as standby/peak support while a smaller unit carries daily load (subject to air quality and criticality).

2) Use VSD where demand truly varies

When airflow changes widely by shift or product mix, variable speed can reduce part-load waste and hold steadier pressure—when applied correctly. It won’t cure restrictive distribution, clogged filtration, poor receiver placement, or incorrect pressure bands; those problems must still be fixed.

3) Add receiver volume where it stabilises the plant

Receivers buffer fast spikes so the compressor doesn’t chase every demand pulse. The key is placement: identify where the pressure dips occur (discharge, after the dryer, far header, or a specific machine) and add storage at the point that reduces cycling and protects users.

4) Fix pressure drop before buying more kW

Many “not enough air” complaints are actually “can’t deliver the air we already generate.” Before investing in capacity, check:

• Pressure drop across dryers/filters during peak demand (inlet vs outlet)
• Undersized/restricted pipe sections (often introduced after expansions)
• Point-of-use regulation so only critical areas run higher pressure
• Blow-off practices (open, unregulated blowing drives massive demand)

If you’re evaluating a continuous-duty setup, rotary screw is often the right direction. If you’re researching Screw Compressor Malaysia options, prioritise control behaviour, part-load performance, service support, and how the unit will be sequenced—not just maximum rated flow.

Common oversizing scenarios (and the safer alternative)

Scenario A: “We sized for future expansion, but it didn’t happen (yet)”

What happens: Years of unloaded running, unstable operation, and avoidable wear.

Safer alternative: Modular capacity—run a smaller base-load now and add another unit later. If you already own the big unit, use it as standby or peak support where possible.

Scenario B: “Far-line pressure is low, so we bought bigger horsepower”

What happens: Discharge pressure rises, leaks rise, power rises, and the far end may still dip during spikes.

Safer alternative: Audit pressure drop and add storage/regulation at the right points.

Scenario C: “One big compressor means low downtime”

What happens: A single point of failure; one trip can stop production.

Safer alternative: Build redundancy with two appropriately sized units (base + trim) and a coverage plan. In some sites, electric powered compressor options can support a more resilient multi-unit setup, depending on electrical capacity and operating profile.

Scenario D: “We bought a big portable unit for projects”

What happens: Inefficient part-load running and inconsistent maintenance because it’s treated like a tool.

Safer alternative: Match portability to actual tool demand and duty cycle, or rent per project. If mobility is required, start with portable compressors sized for real usage rather than worst-case assumptions.

Conclusion: “Bigger” is a strategy—make sure it’s the right one

The message isn’t “never buy a large compressor.” It’s: don’t buy size as a substitute for system design. Oversizing is sold as insurance, but you pay the premium every hour through wasted electricity, unstable pressure, trips, and avoidable service events.

If you inherited an oversized installation, start with measurement and system fixes: tune controls, reduce pressure drop, place storage where it matters, and rethink sequencing. When replacement time comes, right-size to measured demand and plan for modular growth. Done properly, you get what you wanted originally—stable pressure, predictable risk, and lower total cost of ownership.

Frequently Asked Questions

How do I know if my air compressor is oversized for my factory?

Look for long periods of unloaded running, frequent load/unload cycling, and wide pressure swings even when production demand is normal. If discharge pressure is high but the far end still drops, the issue may be distribution pressure loss rather than lack of compressor capacity. A simple starting point is to record run/unload behaviour across a typical shift and compare it with when complaints occur.

Does a bigger compressor always use more electricity?

Not always, but it often does in real plants because oversized systems spend more time at inefficient part-load or unloaded operation. Teams also tend to raise pressure setpoints to “stabilise” supply, which increases leakage and unregulated consumption. The result is higher kWh without a corresponding increase in useful air delivered to point of use.

Should I switch to a VSD compressor to fix pressure instability?

A variable speed drive compressor can help when demand changes significantly throughout the day, because it can trim airflow and hold steadier pressure. However, it won’t fix fundamental problems like undersized piping, clogged filters, poor receiver placement, or incorrect control settings. Treat VSD as one tool in a system design, not a guaranteed cure on its own.

What’s a practical alternative to one oversized compressor?

Many sites get better stability using a base-load plus trim setup: one compressor covers steady demand, and a second unit handles peaks. This reduces unload hours and can lower wear from short cycling. It also improves resilience—if one unit is down for service, you may still have partial capacity to keep critical processes running.

If my plant plans to expand, how can I avoid oversizing now?

Plan for modular capacity instead of buying the “future” size immediately. That can mean selecting a smaller compressor for today’s measured load and leaving space (and electrical/piping provisions) to add a second machine later. If you already own a large unit, it may be better used as standby or peak support rather than as the daily base-load machine.
